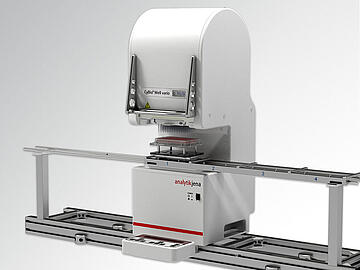

CyBio Well vario - Multichannel Automated Pipetting System 96, 384 and 1536 channel simultaneous pipettor
- High application flexibility due to enormous volume spectrum
- Highest precision in the entire volume range
- Unique pipetting technology prevents cross contamination
Product Details
Multiple Pipette Heads on a Solid Base
The CyBio Well vario includes an automated base which accepts different interchangeable simultaneous pipetting heads. The heads can be changed quickly and easily either at the front or the back of the instrument. The pipetting heads are automatically detected – fully preserving accuracy and precision without calibration steps.
A working volume range of four orders of magnitude allows liquid transfers from 25 nl up to 250 µl on one platform with 96, 384 or 1536 channels. The CyBio Well vario multichannel automated pipetting system adapts into any screening environment and it is compatible with all other accessories of the CyBio Well family. The innovative CyBio Composer Software supports the flexibility of the system and immediately detects new pipetting heads.
- Extremely flexible through enormous volume spectrum
- Highest precision throughout the whole volume range
- Unique pipetting technology prevents cross contamination
- Easy application set-up using CyBio Composer software
- Saves reagent costs with accurate low volume pipetting

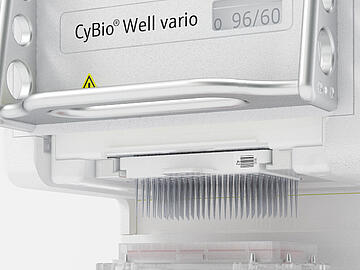

Compatible Pipetting heads
| Head 96/25 µl |
|
|---|---|
| Head 96/60 µl |
|
| Head 96/250 µl |
|
| Head 384/25 µl |
|
| Head 384/60 µl |
|
| Head 1536/8 µl |
|
| Capillary Head |
|
CyBio Well vario - 1536 Head
The 1536 pipetting head uses CyBio's unique and well-proven tip sealing system. The air displacement pistons allow the simultaneous transfer and filling of all wells in a 1536-well plate in a single step.
Specifications
| Volume range: | Precision [CV in %]* of specified volume range: | |
|---|---|---|
| Head 96/25 µl | 0.5-25 µl | 0.5 ≤ 10% 2-5 µl ≤ 2% >5-25µl ≤ 1% |
| Head 96/60 µl | 1–60 µl | 3-5 µl ≤ 2% >5-60 µl ≤ 1% |
| Head 96/250 µl | 5-250 µl | 25-100 µl ≤ 2% 25-250 µl ≤ 1% |
| Head 384/25 µl | 0.5-25 µl | 2-5 µl ≤ 2% >5-25 µl ≤ 1 |
| Head 384/60 µl | 1–60 µl | 3-5 µl ≤ 2% >5-60 µl ≤ 1% |
| Head 1536/8 µl | 1–8 µl | 1-5 µl ≤ 3% 5-8 µl ≤ 2% |
| Capillary Head | 0.050-1 µl | 0.025-1,0 µl ≤ 10% |
*The specification of precision and trueness is based on the Analytik Jena internal gravimetric and photometric standard measurement procedure, which is published as Annex B7 in the ISO IWA 15 document "Specification and method for the determination of volumetric performance of automated liquid handling systems" (www.IWA15.org). The Application Note "Photometric and Gravimetric Liquid Handling Check Procedure to determine the Random Error (Precision) and the Systematic Error (Accuracy) of Automated Liquid Handling Systems (ALHS)" describes this measuremet procedure in detail.
Every modification of this method may influence the results
Technical Data
Footprint (W x D in mm)
| 3-place linear transporting unit | 960 x 370 mm |
| 4-place linear transporting unit | 1300 x 370 mm |
| 5-place linear transporting unit | 1650 x 370 mm |
| 10-place circular transporting unit | 700 x 895 mm |
Height (mm)
772.5 mm
Pipette Channel
96, 384, 1536
Pipetting Tips
Disposable tips/capillaries
Plate Formats
96, 384, 1536
Plate Capacity
- 3 with 3-place linear transporting unit
- 4 with 4-place linear transporting unit
- 5 with 5-place linear transporting unit
- 10 with 10-place circular transporting unit
Volume Range
| Wet pipetting: | 50 nl to 250 μl |
| Dry pipetting: | 200 nl to 250 μl |
Weight
| 39.5 kg | 3, 4 and 5 place linear transporting unit |
| 49 kg | 10-place circular transporting unit |
Software
CyBio Composer Software
The CyBio Well vario is controlled by the CyBio Composer Software:
- Powerful scripting environment
- Direct access to all hardware functions and liquid handling parameters
- Capable of connecting to databases and LIMS systems
Applications

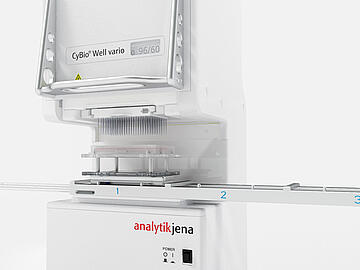

A three, four, five or ten position carriage handles high-precision pipetting needs with high flexibility and ample deck space to run the process successfully. The high flexibility of the CyBio Composer Software supports any pipetting task.
- Reformatting
- Replication
- Plate coating
- Biochemical assays
- ADME and cytotoxicity assays
- Compound management Molecular Biology assays (RNA silencing)
- Cell handling
- uHTS MALDI Sample Preparation — Beyond Spotting
| Applications | |
|---|---|
| Application Reports | Technical Reports |
"How to Use" Guide for the Capillary Head of the CyBio Well vario | |
Start-up Routine and Tip Washing Efficiency Data of the Active Deep Well Tip Wash Station 384 | |
| Precision of the new Ceramic Type Capillary Magazines 384 of the CyBio Well vario Capillary Head — Example Data
| |
Optimized Washing of Disposable Tips after Transfer of DNA Samples | |
Results of Pipetting of Small Volumes using a 384 CyBio Well | |
Performance and reliability testing of a new capillary based non-contact liquid handling system | |
Precise low volume compound handling with the new Nanoliter Head of CyBio Well vario | |
| Precision of the CyBio Well vario 384/60 µL Head, Example Data of Different Liquids, Pipetting Modes and Disposable Tips with Fluorescence Readout |
| Stability of the Precision of Different CyBio-Well vario Heads after Multiple Tip Washing Routines |
| |
| Performance Data demonstrating the Efficiency of the Tip Wash Station of the CyBio Well Family |
Automated Pipetting System Accessories
Plate Transfer Unit
This module can be mounted to the CyBio Well or CyBio Well vario and allows the automatic relocation of a microplate to any carriage position.
Microplate Adapter
The micro plate adapter allows you to use any type of micro plates from various manufacturers on Analytik Jena devices.
Automated Reservoir Filling
The reagent reservoirs are designed for the storage and automatically refilling of liquids, such as buffers, DMSPO, and more.
Barcode Handling
Analytik Jena offers tailor-made solutions for the creation of barcodes, labeling of microplates, and reading of barcodes mid-process.
Tip Wash Station
With the aid of these wash modules, tips in 96 and 384 formats can be washed automatically with pump-supported (active) inflow and drain – significantly reducing disposable costs.
Plate Handling and Storage
Efficient microplate storage with stackers enables fully automated processing of large batches of plates and increases your walk-away time.
Tip Changer
For high throughput applications where tip changing is necessary, the TipChanger can store up to 100 tip racks.
