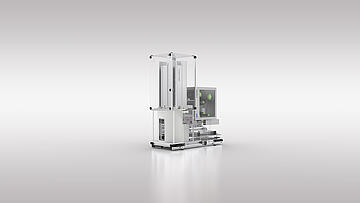

CyBio QuadPrint Compact, high speed and precise printing and labeling system

  • Flexible labeling on all four sides of the microplate
  • Automatic label height adjustment
  • Direct transfer from stack to label position

Product Details

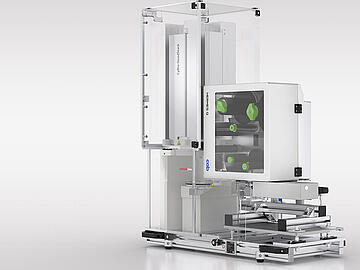

Compact, high speed and precise printing and labeling system

The novel barcode labeler CyBio QuadPrint sets higher standards in high speed microplate labeling. It features a very small footprint, flexible labeling on all four sides of the microplate as well as an automatic label height adjustment.

  • Flexible barcode printing on all four sides of the microplate
  • Automatically adjustable label height
  • Direct transfer from stack to label position
  • User friendly software with Print Studio (GUI)
  • Based on the new ergonomic stacker system CyBio QuadStack

“This product will be replaced with new generation soon and is not available at the moment.  Do you want to be informed, when its available again – send us a message this your contact details using this eMail.”

What Our Customers Say

“High-quality products and superb service make Analytik Jena an excellent partner for us”

Michael Brehm, Laboratory technology and automation, DKMS LIFE SCIENCE LAB

Read the Story

Technical Data

Weight

CyBio QuadPrint M:CyBio QuadPrint L:
approx 75 kgapprox 75 kg

Plate formats

CyBio QuadPrint M:CyBio QuadPrint L:
Shallow well, deep well, high base, low profile, PCR microplates, tube racks and tip boxes
(if stackable and enough space provided for the label, the minimum height of which is 5.5 mm)
Shallow well, deep well, high base, low profile, PCR microplates, tube racks and tip boxes
(if stackable and enough space provided for the label, the minimum height of which is 5.5 mm)

Technology

CyBio QuadPrint M:CyBio QuadPrint L:
Printing method thermal transfer, print resolution 600 dpiPrinting method thermal transfer, print resolution 600 dpi

Plate capacity

CyBio QuadPrint M:CyBio QuadPrint L:
126174

Speed

CyBio QuadPrint M:CyBio QuadPrint L:

  • Less then 10 sec for labling 1 side (including plate handling)
  • Less then 20 sec for labling 4 side (including plate handling)


  • Less then 10 sec for labling 1 side (including plate handling)
  • Less then 20 sec for labling 4 side (including plate handling)


Minimal Requirements

CyBio QuadPrint M:CyBio QuadPrint L:
Microsoft® Access, Microsoft® Excel, text files and all ODBC compatible databasesMicrosoft® Access, Microsoft® Excel, text files and all ODBC compatible databases

Footprint (W x D in mm)

CyBio QuadPrint M:CyBio QuadPrint L:
1560 x 4601560 x 460

Height (mm)

CyBio QuadPrint M:CyBio QuadPrint L:
966.51166.5
