Biometra Compact XS/S, M and L/XL
-
UV transparent gel trays
-
Models for high-throughput applications
-
Four multichannel pipet compatible combs per tray size
-
Easy-to-use casting systems
Product Details

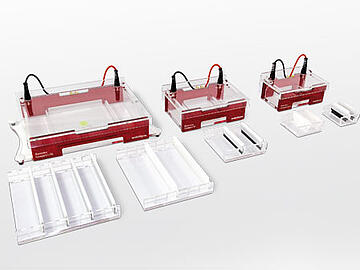

Straight Apparatus Family for Submerged Gel Electrophoresis
The Compact line is characterized by a straight design for everyday use. The robust construction of thick-walled acrylic glass and the long-life components as platinum electrodes and gold-coated safety plugs make it the ideal tool for both research and routine laboratories. There are four different chamber sizes supporting nine different gel sizes:
- Compact XS/S for mini gels with tray XS or S
- Compact M for midi gels with tray M
- Compact L/XL for maxi gels with tray L or XL
- Compact Multi-Wide for mini-wide and midi-wide gels
Various details provide for ease of use: The safety lids open upwards giving free access to the chamber for sample pipetting. Opening the lid upwards avoids the risk of sample and buffer spillage as often seen with sliding lids. The open Bigfoot Lid can set upright on its back in order to save space. The walls of the buffer chamber are partially cut out to enable easy removal of the gel tray without touching the buffer. The choice of color coded 1.0 mm and 1.5 mm thick combs and the optimal number of comb positions per tray provide for high flexibility in applications. Compact L/XL features four leveling feet and a bull's eye level to ensure uniform runs with large gels even on working benches that are not leveled.
Gel Casting
Excellent "plug-and-cast" casting system for tray sizes XS, S and M make leakfree gel casting a matter of seconds: just drop the gel tray in and fix with minor contact pressure. For maxi gels an easy-to-handle gel caster with leveling feet and bull's eye level can be used for both tray sizes L and XL. Additionally, gel trays of other Biometra electrophoresis systems can be applied: Horizon® 20•25, Agagel maxi (20 cm x 20 cm gel tray). The simple method of using tape for tray sealing can be applied.
Technical Data
Model | Gel size (B x L) | Max. sample number |
|---|---|---|
Compact XS | 8.2 cm × 7.1 cm | 32 with 2 combs |
Compact S | 8.2 cm × 10.5 cm | 48 with 3 combs |
Compact M | 12.4 cm × 14.5 cm | 100 with 4 combs |
Compact L | 23.9 cm × 20.0 cm | 312 with 6 combs |
Compact XL | 23.9 cm × 25.0 cm | 416 with 8 combs |
Order Information
| Order number | Item |
|---|---|
| Order Information Compact XS and Compact S | |
| 846-025-000 | Compact XS: Chamber with bigfoot safety lid (W x D x H, cm = 13.6 x 21.6 x 10.6), UV transparent tray for gel size 8.2 cm x 7.1 cm, 2 combs (11 wells, 1.0 mm thick) |
| 846-025-010 | Gel casting system XS: Casting chamber for gel tray 8.2 cm x 7.1 cm, delivered without gel tray |
| 846-025-099 | Compact XS system: Compact XS + gel casting system XS (see 025 - 000 + 025 - 010) |
| 846-025-100 | Compact S: Chamber with bigfoot safety lid (W x D x H, cm = 13.6 x 21.6 x 10.6), UV transparent tray for gel size 8.2 cm x 10.5 cm, 2 combs (11 wells, 1.0 mm thick) |
| 846-025-110 | Gel casting system S: Casting chamber for gel tray 8.2 cm x 10.5 cm, delivered without gel tray |
| 846-025-199 | Compact S system: Compact S + gel casting system S (see 025 -100 + 025 -110) |
| Order Information Compact M | |
| 846-025-200 | Compact M: Chamber with bigfoot safety lid (W x D x H, cm = 17.7 x 25.8 x 10.6), UV transparent tray for gel size 12.4 cm x 14.5 cm, 2 combs (18 wells, 1.0 mm thick) |
| 846-025-210 | Gel casting system M: Casting chamber for gel tray 12.4 cm x 14.5 cm, delivered without gel tray |
| 846-025-299 | Compact M system: Compact M + gel casting system M (see 025 - 200 + 025 - 210) |
| Order Information for Compact L and Compact XL | |
| 846-025-300 | Compact L: Chamber with leveling feet, gauge and bigfoot safety lid (W x D x H, cm = 29.4 x 38.2 x 11.2), UV transparent tray for gel size 23.9 cm x 20.0 cm, 3 combs (36 wells, 1.0 mm thick) |
| 846-025-310 | Gel casting system L/XL: Gel caster with leveling feet and gauge for gel tray 23.9 cm x 20.0 cm and gel tray 23.9 cm x 25.0 cm, delivered without gel tray |
| 846-025-399 | Compact L system: Compact L + gel casting system L/XL (see 025 - 300 + 025 - 310) |
| 846-025-400 | Compact XL: Chamber with leveling feet, gauge and bigfoot safety lid (W x D x H, cm = 29.4 x 38.2 x 11.2), UV transparent tray for gel size 23.9 cm x 25.0 cm, 4 combs (26 well, 1.5 mm thick) |
| 846-025-499 | Compact XL system: Compact XL + gel casting system L/XL (see 025 - 400 + 025 - 310) |
| Order number | Item |
|---|---|
| Accessories for Compact XS and Compact S Combs, 1.0 mm thick | |
| 846-025-001 | 8 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-002 | 11 wells, 20 µl/well |
| 846-025-003 | 13 wells, 16 µl/well |
| 846-025-004 | 16 wells, 12 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Combs, 1.5 mm thick | |
| 846-025-015 | Preparative comb: 1 well (342 µl) plus 2 marker wells (30 µl/well) |
| 846-025-011 | 8 wells, 45 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-012 | 11 wells, 30 µl/well |
| 846-025-013 | 13 wells, 24 µl/well |
| 846-025-014 | 16 wells, 18 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Gel trays | |
| 846-025-020 | Gel tray XS for 8.2 cm x 7.1 cm gel size, UV transparent, 2 comb positions with 3.0 cm distance |
| 846-025-021 | Gel tray S for 8.2 cm x 10.5 cm gel size, UV transparent, 2 comb positions with 4.7 cm distance, 3 comb positions with 3.1 cm distance |
| 846-025-006 | Loading stripes, adhesive, red / green / yellow for gel tray XS and S |
| Accessories for Compact M Combs, 1.0 mm thick | |
| 846-025-201 | 11 wells, 36 µl/well |
| 846-025-202 | 13 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-203 | 18 wells, 20 µl/well |
| 846-025-204 | 21 wells, 16 µl/well |
| 846-025-205 | 25 wells, 12 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Combs, 1.5 mm thick | |
| 846-025-216 | Preparative comb: 1 well (594 µl) plus 2 marker wells (30 µl/well) |
| 846-025-211 | 11 wells, 54 µl/well |
| 846-025-212 | 13 wells, 45 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-213 | 18 wells, 30 µl/well |
| 846-025-214 | 21 wells, 24 µl/well |
| 846-025-215 | 25 wells, 18 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Gel trays | |
| 846-025-221 | Gel tray M for 12.4 cm x 14.5 cm gel size, UV transparent, 3 comb positions with 4.5 cm distance, 4 comb positions with 3.3 cm distance |
| 846-025-206 | Loading stripes, adhesive, red / green / yellow for gel tray M |
| Accessories for Compact L and Compact XL Combs, 1.0 mm thick | |
| 846-025-301 | 22 wells, 36 µl/well |
| 846-025-302 | 26 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-303 | 36 wells, 20 µl/well |
| 846-025-304 | 42 wells, 16 µl/well |
| 846-025-305 | 52 wells, 12 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Combs, 1.5 mm thick | |
| 846-025-316 | Preparative comb: 1 well (1284 µl) plus 2 marker wells (30 µl/well) |
| 846-025-311 | 22 wells, 54 µl/well |
| 846-025-312 | 26 wells, 45 µl/well, multichannel pipet compatible, 9 mm spacing |
| 846-025-313 | 36 wells, 30 µl/well |
| 846-025-314 | 42 wells, 24 µl/well |
| 846-025-315 | 52 wells, 18 µl/well, multichannel pipet compatible, 4.5 mm spacing |
| Gel trays | |
| 846-025-320 | Gel tray L for 23.9 cm x 20.0 cm gel size, UV transparent, 6 comb positions with 3.1 cm distance |
| 846-025-321 | Gel tray XL for 23.9 cm x 25.0 cm gel size, UV transparent, 8 comb positions with 3.0 cm distance |
| 846-025-306 | Loading stripes, adhesive, red / green / yellow for gel tray L and XL |
