UVP ChemStudio-Serie

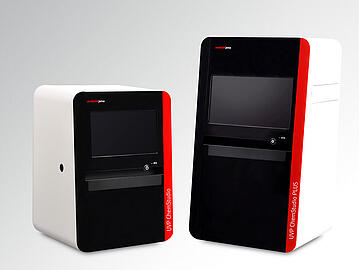

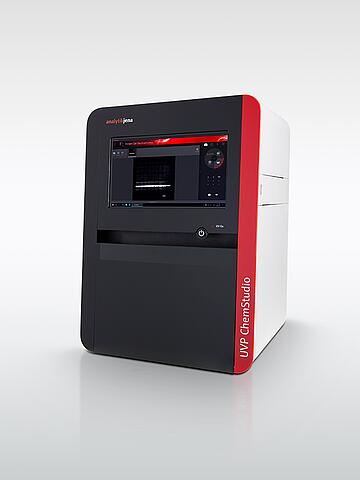

UVP ChemStudio Series – Western Blot Imagers The next generation of gel and blot imagers

  • Imager for chemiluminescence, fluorescence, multiplexing, and colorimetry in two different sizes
  • Upgradeable to NIR laser-based modules for near-infrared imaging applications
  • Capture images of the highest quality with two different camera options, both with deep cooling and efficient photon-to signal conversion

Product Details

  • Wide aperture lens optics capture more light in low-light applications; signals come faster and are stronger
  • Small footprint to maximize the use of laboratory bench space
  • Available as either a PC-operated unit or as a stand-alone instrument with an integrated color touchscreen
  • Overhead white, red, green, and blue LEDs come as standard in the series
  • “Slide2Hide“ door or fold down door minimizes benchtop interferences
  • Includes Ethidium Bromide emission filter in an easy-to-access automated filter wheel with up to five positions
  • Chemi tray for sample placement on a black, non-reflective surface
  • VisionWorks Software, with comprehensive features, optimizes image acquisition and analysis

Gel and Blot Imagers Evolved

No matter what your preferred method of western blotting is, the UVP ChemStudio Series features the highest sensitivity in gel analysis and blotting available. Fluorescent western blotting is the preferred method for quantitative comparisons between protein samples and for detection of multiple proteins. However, the ChemStudio and ChemStudio PLUS systems were built with flexibility in mind, providing RGB as standard and NIR modules with laser-based source at two channels: 660 nm and 787 nm detection as optional.

Whatever your preferred research method, the UVP ChemStudio product family was built to streamline your protocol from detection to analysis, providing the most accurate quantitation of data for an unlimited range of applications.

The UVP ChemStudio gel and blot imagers feature the newest technology, a brand new software interface, and top-of-the-line camera options that guarantee a wider dynamic range of imaging than ever before. With a ChemStudio in your lab, your research is unlimited.

Applications

Pharma & Life Science

Show applications

Applications

  • Stain-Free Protein Fluorescence: A New Twist on a Classic Phenomenon

    Open application

  • Multiplex Fluorescent Western Blot Detection Using the UVP ChemStudio Imaging System

    Open application

  • Expression of the Excitatory Postsynaptic Scaffolding Protein, Shank3

    Open application

  • Toll-like Receptor 4 Inhibition Improves Immune Dysfunction

    Open application

  • AppNote - ChemStudio - Elevated Levels of an Enzyme Involved in Coenzyme B₁₂ Biosynthesis Kills Escherichia coli

    Open application

  • AppNote_UVP_Chem_Studio_-_Anticancer_Activity_in_vivo.pdf

    Open application

Technical Data

 ChemStudioChemStudio PLUS
Illumination
  • Overhead: white, red, green and blue LEDs included
  • Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
  • Overhead optional NIR modules with laser-based source at two channels: 660 nm and 787 nm and eLITE
  • Illuminated area: 16.8 x 21 cm
  • Overhead: white, red, green and blue LEDs included
  • Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
  • Overhead optional NIR modules with laser-based source at two channels: 660 nm and 787 nm, UV and eLITE
  • Illuminated area: 25 x 26 cm
Filter wheelFive-position automated filter wheel
Darkroom Features
  • 13.3” integrated, multi-touch computer (UVP ChemStudio touch only)
  • Fold-down door
  • Thin-Line Transilluminator in a pull-out tray
  • UV On indicator light
  • USB port (right panel of unit)
  • 6 additional USB ports (back side of unit)
  • Access port for optional UVP eLITE Light Source
  • Filter and illumination control via software
  • 15.6” integrated, multi-touch computer (UVP ChemStudio PLUS touch only)
  • Slide2Hide door
  • Thin-Line Transilluminator in a pull-out tray
  • UV On indicator light
  • USB port (right panel of unit)
  • 6 additional USB ports (back side of unit)
  • Access port for optional UVP eLITE Light Source
  • Filter and illumination control via software
UV-Protection Shieldincludedintegrated, slide down
Dimensions
(L x W x H)
41 x 46 x 61 cm (16 x 18 x 24 inch)43 x 47 x 82 cm (17 x 19 x 32 inch)
Camera Resolution6.0 MP6.0 MP
Pixel Resolution2184 x 1472 - 3296 x 24722184 x 1472 - 3296 x 2472
Gray Scales65,53665,536
Cooling from ambient-57°C / -60°C-57°C / -60°C
Lens25mm, f/0.9525mm, f/0.95 (695 camera)
SensorCCDCCD
Sensor Bit Depth (A/D)16 bit16 bit

Order Information

Order numberDescription
115 V230 VModelSpecificationsApplications
849-97-0930-01849-97-0930-02

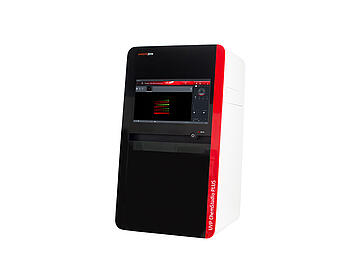

UVP ChemStudio touch, 695

  • 6.0 MP
  • Deep level cooling
  • Automated lens
  • Software: application-
    based automation
  • Versatile, from
    chemiluminescence to NIR
  • 16.8 x 21 cm Illuminated area
  • Chemiluminescence
  • Fluorescence
  • Gel Documentation
  • Colormetric
  • Multiplex
  • Visible
  • Near Infrared
849-97-0930-03849-97-0930-04UVP ChemStudio, 695
849-97-0851-01849-97-0851-02

UVP ChemStudio PLUS touch, 695

  • 6.0 MP
  • Deep level cooling
  • Automated lens
  • Software: application-
    based automation
  • Versatile, from
    chemiluminescence to NIR
  • 25 x 26 cm Illuminated area
  • Chemiluminescence
  • Fluorescence
  • Gel Documentation
  • Colormetric
  • Multiplex
  • Visible
  • Near Infrared
849-97-0851-03849-97-0851-04UVP ChemStudio PLUS, 695
MultiSpectral Light Sources
Order numberDescription
115 V230 VModel

98-0105-01

98-0105-02UVP eLITE Xenon, kit with Epi-Light fibers
98-0072-0798-0072-07UVP eLITE motorized, kit with Epi-Light fibers
Order numberDescription
Transilluminators
95-0594-01UVP UV Thin-Line Transilluminator, 302 nm, LP, 16.8 cm x 21 cm
95-0584-01UVP UV Thin-Line Transilluminator, 302 nm, LP, 25 cm x 26 cm
95-0476-01UVP Visi-White™ LED Transilluminator, 28 cm x 28 cm
95-0591-01UVP Visi-Blue™ LED Transilluminator, 24.5 cm x 24.5 cm
95-0599-01UVP Visi-White™ LED Transilluminator, 16.8 cm x 21 cm
95-0593-01UVP Visi-Blue™ LED Transilluminator, 16.8 cm x 21 cm
Converter Plates
38-0428-01UVP Visi-White™ Converter Plate UV-to-white, 25 cm x 26 cm filter size
38-0200-04UVP Visi-Blue™ Converter Plate, 25 cm x 26 cm filter size, 460 - 470 nm
38-0408-01UVP Visi-White™ Converter Plate UV-to-white, 16.8 cm x 21 cm filter size
38-0409-01UVP Visi-Blue™ Converter Plate, 16.8 cm x 21 cm filter size, 460 - 470 nm
Emission Filters
38-0220-01Emission filter 580 - 630 nm: EtBr
38-0219-01Emission filter 510 - 560 nm: SYBR® Green
38-0221-01Emission filter 520 - 620 nm: SYBR® Gold
38-0361-01Emission Filter 465 - 495 nm: CFP mice
38-0352-01Emission Filter 503 - 523 nm: GFP mice
38-0340-01Emission Filter 513 - 557 nm: Cy2®, FITC, FAM™, GFP, SYBR® Green, SYBR® Gold
38-0344-01Emission Filter 565 - 625 nm: Alexa555®, Cy3®, SYPRO® Orange
38-0369-02Emission Filter 645 nm: Alexa568®, SYPRO® Red, TexasRed®
38-0339-01Emission Filter 668 - 722 nm: Alexa633®, Cy5®
38-0369-01Emission Filter 700 - 740 nm: IRDye 680, CF 680
38-0362-01Emission Filter 767 - 807 nm: Alexa750®, Cy7®
38-0365-01Emission filter 780 nm long pass: Alexa750®
38-0368-01Emission filter 800 nm long pass: IRDye800, CE770
NIR Accessories
849-98-0123-01Overhead NIR modules with laser-based source at two channels: 660 nm and 787 nm
38-0417-01Emission Filter 810 nm: IRDye 800CW
Additional Accessories
89-0069-06UVP Thermal printer Mitsubishi P95DE, high resolution (325 dpi), USB 2.0 interface, 100 - 240 V, dimensions 8.5 x 15.4 x 23.9 (H x W x D cm)
89-0174-01Thermal printer paper K95HG, high glossy, 5 rolls at 18 m
89-0038-01Thermal printer paper KP65HM, high contrast, 4 rolls at 20 m
85-0007-01UV transparent acrylic tray for preparative tasks on a transilluminator, 11.5 in x 9 in
85-0011-01UV transparent acrylic tray for preparative tasks on a transilluminator, 16.8 cm x 21 cm
85-0003-01UVP Gel-Ruler
85-0002-01UVP Gel-Cutter
85-0006-01UV transparent gel scoop, scoop size 14 cm x 15 cm
98-0064-01Focus target, fluorescent
98-0002-04UV light face protection shield

Downloads

Brochure UVP ChemStudio Imaging Systems

Open PDF

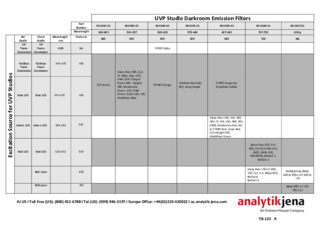

Filter Selection Chart for Studio Systems
