UVP Crosslinker CL-3000

CL-3000 General Applications

  • UV induced mutations
  • Membrane crosslinking
  • Biomolecular crosslinking
  • UV dose calibrated to a NIST traceable standard

Product Details

  • Built-in radiometer calibrated to a NIST traceable standard enables precise and accurate dosing to obviate end-user calibration

  • Safety interlocks to prevent users from accidental UV exposure

  • Capable of delivering up 10 J/cm2 of UVA, UVB, or UVC

  • Extensive publication record using UVP Crosslinkers

  • Highly-uniform surface illumination

  • Compact-size to accommodate limited lab space

Immobilization of Nucleic Acids to Membranes

The UVP Crosslinker is a microprocessor controlled UV irradiation system dedicated to nucleic acid linking to membranes for Southern, Northern, Dot and Slot Blot applications.

Microprocessor Controlled Reproducibility
The programmable microprocessor constantly monitors the UV light emission. Irradiation stops exactly when the programmed energy is achieved. Thus, the effect of decreasing UV intensity due to bulb aging is compensated for.

Durability
The UVP Crosslinker combines the latest UV technology with high quality manufacturing: aluminum UV exposure chamber, protective quartz disk on the UV sensor cell, and a highly resistant and easy-to-clean keypad and housing.

Ease of use
The large display provides a series of predefined methods, making the UVP Crosslinker an easy to use yet powerful instrument for immobilization of nucleic acids to membranes. The programmed data are shown on the LED display.

Directory of published research articles can be found here

*Product performance and effectiveness will depend on the user.*

Legacy UVP Crosslinkers

Legacy UVP Crosslinker CL-1000 were discontinued August 1st, 2020. Service and spare parts for UVP Crosslinker CL-1000, CL-1000M, and CL-1000L will be available and offered for 5 years from discontinuation date (August 1st 2025).

Technical Data

Technical SpecificationsCL-3000CL-3000MCL-3000L
Wavelengths254 nm302 nm365 nm
Bulbs6 x 8 Watt
Energy0000.1 - 9999.9 mJ/cm² (0 - 10 J/cm²)
Time000:01 - 999:59 (>300 J/cm²)
Temperature15⁰C - 35⁰C
Humidity70% Non-Condensing
Altitudeup to 3,000M (9,842 ft)
Sound Level≤ 50 dba
Housing Surface Temp≤ 30⁰C
Startup Time< 1 sec
External Dim (L x W x H)41 cm x 40 cm x 26.5 cm
Internal Dim (L x W x H)35 cm x 27 cm x 16 cm
Weight6.8 Kg: 15 lb
Operating Power100 - 115VAC & 230VAC 50/60Hz
CertificationsCE, RoHS (CSA In Process)



Order Information

Order numberItem
115 V230 VDescriptionWavelength
849-95-0615-01849-95-0615-02UVP Crosslinker CL-3000254 nm
849-95-0615-03849-95-0615-04UVP Crosslinker CL-3000M302 nm
849-95-0615-05849-95-0615-06UVP Crosslinker CL-3000L365 nm
34-0007-01   (US)
849-057-007 (EU)
Replacement UV tube, 8 Watt, 254 nm
34-0042-01   (US)Replacement UV tube, 8 Watt, 302 nm
34-0006-01   (US)Replacement UV tube, 8 Watt, 365 nm

Downloads

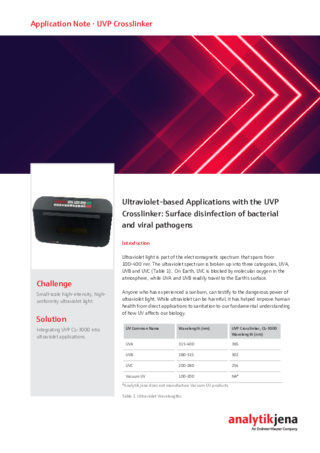

History of Excellence: UV-based Applications

Application Note

Open PDF

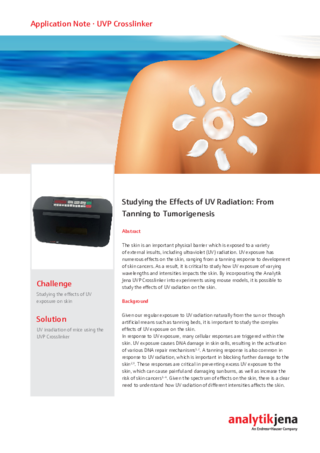

Studying the Effects of UV Radiation

Application Note

Open PDF

Brochure-UV Lab Catalog

Open PDF
