SARS-CoV-2 (Coronavirus) Detection Workflow for research use only

Fri 11 Sep, 2020

Overview of the SARS-CoV-2 (Coronavirus) Detection Process

In December 2019 the novel SARS-CoV-2 (formerly named 2019-nCoV) was identified in Wuhan, the capital of China’s province Hubei. Based on its rapid spreading with more than 105,000,000 confirmed cases by beginning of February 2021 the World Health Organization declared the outbreak a public health emergency of international concern.

Important facts:

SARS-CoV-2: (+) ss-RNA virus
Related to SARS-CoV and MERS-CoV
Detection based on basis of PCR

Analytik Jena offers a broad product portfolio in the field of nucleic acid extraction and PCR or real-time PCR with both extraction kits and the necessary equipment. For research purposes for the detection of SARS-CoV-2 the following workflow is suggested.

1. Sample Collection

In principle, respiratory material such as nasopharyngeal and oropharyngeal swabs are suitable for the detection of respiratory pathogens. For more detailed information, recommendations of the WHO or other institutions should be observed.
Serum can also be used for serological tests, acute and convalescence samples.

2. Nucleic Acid Extraction

Analytik Jena offers a choice of extraction platforms and related extraction kits for extraction of viral RNA from swabs, cell free body fluids (e.g. serum, plasma, cerebrospinal fluid) and more. The product line innuPREP AniPath allows the simultanous extraction of both bacterial and viral DNA and/or RNA from respective starting materials. A detailed overview is shown in the table below.

Handling	Sample throughput	Extraction platform		Extraction kit
Handling	Sample throughput	Name	Key features	Extraction kit
Manual	Low	-	Up to 12 samples / 25 min	innuPREP Virus TS RNA Kit innuPREP Virus DNA/RNA Kit
Automated	Middle	InnuPure C16 touch	Up to 16 samples / 31 - 84 min Extraction platform only	innuPREP AniPath DNA/RNA Kit - IPC16, non-filled innuPREP AniPath DNA/RNA Kit - IPC16 innuPREP Virus DNA/RNA Kit - IPC16, non-filled innuPREP Virus DNA/RNA Kit - IPC16
	High	CyBio FeliX	Up to 96 samples / 62 - 73 min Extraction platform + liquid handling (e.g. preparation of PCR)	innuPREP AniPath DNA/RNA Kit – FX* innuPREP Virus TS RNA Kit 2.0 - FX innuPREP Virus DNA/RNA Kit - FX
	High	KingFisher Flex	Up to 96 samples / 60 min Extraction platform only	innuPREP AniPath DNA/RNA Kit - KFFLX innuPREP RNA Virus PLUS Kit – KFFLX

* Release planned for mid 2021

3. Amplification and Detection

Molecular assays to detect SARS-CoV-2 have been developed and are accessible through the homepage of the WHO. Furthermore, several commercial kits based on real-time PCR
are available. The table below shows all available detection kits which are tested on qTOWER³ and/or qTOWER³ 84.

Company name	Assay name	CE-IVD/ FDA EUA*	Dye/ configuration/ target
Assays detecting SARS-CoV-2
Altona Diagnostic	RealStar® SARS-CoV-2 RT-PCR Kit 1.0 RUO	-	FAM: Color Module 1 (E gene) VIC: Color module 2 (IC) Cy5: Color module 5 (S gene)
BGI Genomics	Real-Time Fluorescent RT-PCR Kit for Detecting SARS-2019-nCoV	-	FAM: Color Module 1 (N-CoV) VIC/HEX: Color Module 2 (IC)
EuroImmun	EuroRealTime SARS-CoV-2	CE IVD (qTOWER³)	FAM: Color Module 1 (ORF1ab and N gene) HEX: Color Module 2 (IC)
Fosun Pharma USA	Fosun COVID-19 RT-PCR Detection Kit	-	FAM: Color Module 1 (ORF1ab) HEX: Color Module 2 (N gene) ROX: Color Module 4 (E gene) Cy5: Color Module 5 (IC)
IDEXX	Water SARS-CoV-2 RT-PCR Test	-	FAM: Color Module 1 (N1 and N2) HEX: Color Module 2 (IC)
Ingentix	ViroReal® Kit SARS-CoV-2 & SARS	CE IVD (qTOWER³)	FAM: Color Module 1 (RdRp) Cy5: Color Module 5 (IC)
Inno-Train Diagnostik GmbH	Covid-19 FluoGene Q	CE IVD (qTOWER³)	FAM: Color Module 1 (N1 gene) VIC/JOE: Color Module 2 (M gene) ROX: Color Module 4 (IC)
Mikrogen	ampliCube Coronavirus SARS-CoV-2	-	FAM: Color Module 1 (E gene) HEX: Color Module 2 (ORF1a) Cy5: Color Module 5 (IC)
Mikrogen	ampliCube Coronavirus Panel	-	FAM: Color Module 1 (MERS-CoV) HEX: Color Module 2 (SARS-CoV,SARS-CoV-2, Bat SARS-like CoV) ROX: Color Module 4 (HCoV) Cy5: Color Module 5 (IC)
Perkin Elmer	SARS-CoV-2 RT-qPCR Reagent kit	CE IVD (qTOWER³)	FAM: Color Module 1 (N gene) HEX: Color Module 2 (ORF1ab) Cy5: Color Module 5 (IC)
Perkin Elmer	New Coronavirus Nucleic Acid Detection Kit	FDA EUA (qTOWER³) FDA EUA (qTOWER³ 84)	FAM: Color Module 1 (N gene) ROX: Color Module 4 (ORF1ab) HEX: Color module 2 (IC)
PrimerDesign	Coronavirus (COVID-19)		FAM: Color Module 1 (RdRp) VIC: Color module 2 (IC)
Procomcure Biotech	PhoenixDx® SARS-CoV-2 IVD	CE IVD (qTOWER³)	FAM: Color Module 1 (E gene) FAM: Color Module 1 (RdRp)
R-Biopharm	RIDA®GENE SARS-CoV-2 RUO	-	FAM: Color Module 1 (E gene) VIC: Color module 2 (IC)
RTA Laboratories	Diagnovital SARS-CoV-2 Multiplex	FDA EUA (qTOWER³) pending	FAM: Color Module 1 (N gene, ORF1ab) HEX: Color Module 2 (IC)
Seegene	Allplex™ 2019-nCoV Assay	-	FAM: Color Module 1 (E gene) HEX: Color Module 2 (IC) ROX: Color Module 4 (RdRP gene) Cy5: Color Module 5 (N gene)
Shimadzu	2019 Novel Coronavirus Detection Kit	-	FAM: Color Module 1 (N1 gene) ROX: Color Module 4 (N2 gene) Cy5: Color Module 5 (IC)
Siemens healthineers / Fast-Track Diagnostic	FTD SARS-CoV-2 Assay (RUO)	-	FAM: Color Module 1 (ORF1ab and N gene) Cy5: Color Module 5 (IC)
SolGent	DiaPlexQ Novel Coronavirus (2019-nCOV) Detection Kit	-	FAM: Color Module 1 (N gene) VIC: Color Module 2 (ORF1a) Texas Red: Color Module 4 (IC)
TIB MOLBIOL	TIB MOLBIOL LightMix® Modular SARS-CoV-2 (COVID19) RdRP	-	FAM: Color Module 1 (RdRP gene) Cy5: Color module 5 (IC)
TIB MOLBIOL	TIB MOLBIOL LightMix® Modular SARS-CoV.2 (COVID19) E gene	-	FAM: Color Module 1 (E gene) Cy5: Color module 5 (IC)
Wells Bio	careGENE™ COVID-19 RT-PCR kit	-	FAM: Color Module 1 (N gene) ROX: Color Module 4 (IC) Cy5: Color Module 5 (RdRp)
Wells Bio	careGENE™ N-Cov RT-PCR Kit	-	FAM: Color Module 1 (E gene) ROX: Color Module 4 (IC)
Assays detecting SARS-CoV-2 mutations
TIB MOLBIOL	TIB MOLBIOl VirSNiP SARS-CoV-2 Spike 501Y	-	FAM: Color Module 1 (SARS Spike 501Y)
Inno-Train Diagnostik GmbH	Covid-19 FluoGene Q N501Y (RUO)	-	FAM: Color Module 1 (N1 gene) VIC/JOE: Color Module 2 (M gene) ROX: Color Module 4 (IC) Cy5: Color Module 5 (S N501Y)
Assays detecting SARS-CoV-2 and Influenza viruses
EuroImmun	EURORealTime SARS-CoV-2/Influenza A/B	CE IVD (qTOWER³)	FAM: Color Module 1 (ORF1ab and N gene) ROX: Color Module 4 (Influenza A) Cy5: Color Module 5 (Influenza B) HEX: Color Module 2 (IC)
Ingentix	ViroReal® Kit SARS Coronavirus & Influenza A/B	CE IVD (qTOWER³)	FAM: Color Module 1 (SARS) VIC: Color module 2 (Influenza A/B) Cy5: Color Module 5 (IC)
Mikrogen	ampliCube Respiratoty Flu & SARS-CoV-2	-	FAM: Color Module 1 (Influenza-A) HEX: Color Module 2 (Influenza-B) ROX: Color Module 4 (ORF1a) Cy5: Color Module 5 (IC) Cy5.5: Color Module 6 (E gene)
R-Biopharm	RIDA®GENE Flu & SARS-CoV-2 RUO	-	FAM: Color Module 1 (Influenza A/B) VIC: Color Module 2 (ICR) ROX: Color Module 4 (E gene) Cy5: Color Module 5 (RdRp gene)

*Please note that products of Analytik Jena GmbH listed here are not explicitly marked as CE IVD and are exclusively intended for research purposes. The validation of the kits was performed by the assay manufacturers themselves on qTOWER devices and was subsequently CE IVD or FDA EUA certified.

The PCR set up can be pipetted by a liquid handling platform like CyBio FeliX . Using PCR workstations or cabinets increases maximum safety and minimizes contamination risks. Single
components such as qPCR Master Mixes and Reverse Transcription MasterMix are available via Analytik Jena as well. In general all Real-time PCR-based assays can be established on the qTOWER³ real-time thermal cycler family provided by Analytik Jena or similar. Information on further commercial qPCR assays for SARS-CoV-2 detection with confirmed compatibility on qTOWER3 devices is available on request.

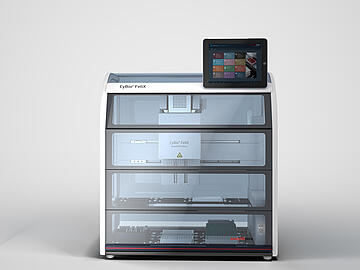

Automated Pipette Robot - CyBio FeliX

Flexible and fully automatic multi-channel pipetting robot

Learn more: CyBio FeliX

Real-time Thermal Cyclers

High performance DNA amplification and precise quantification

Learn more: qTOWER³

InnuPure C16 touch

Learn more: InnuPure C16 touch

Downloads

Flyer Workflow detection of SARS-CoV-2 (English)

Open PDF

Implementation of SARS-CoV-2 (Coronavirus) detection assays from TIB MOLBIOL on qTOWER³ for research use

Open PDF

Web Seminar Biofoundries and SARS-CoV-2 diagnostics

Learn more: Web Seminar Biofoundries and SARS-CoV-2 Diagnostics
