UVP Solo Elite Automated UV Gel Documentation System

  • All-in-one design for streamlined gel documentation

  • High resolution 6.3 MP camera
  • Large 11.6” touch screen with user-friendly software

  • Epi-white and epi-blue LED lights enable a variety of gel imaging applications

Product details

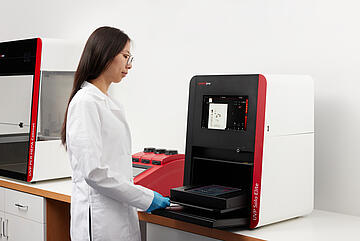

The UVP Solo Elite is the perfect addition to any lab running routine gel analysis, imaging and documentation. This compact imager provides researchers rapid processing in a bench space saving format. With the most competitve specifications on the market and a budget friendly price, the UVP Solo Elite is the right fit for your lab.

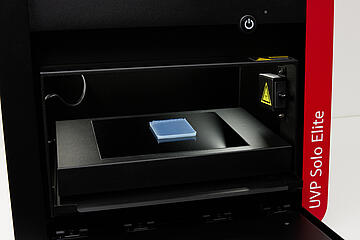

This all-in-one system features an integrated 11.6 inch touch screen computer, a high resolution 6.3 MP camera - available as color or monochrome with an automated lens, a three position filter tray with pre-installed filters, overhead blue and white LED lighting and the UVP Elite UV Transilluminator.

Easily switch between emission filters
The three-position emission filter tray can be used to place three different filters and switch between them for different applications. A broad band filter (535 nm - 660 nm) is included with the system and a variety of other emission filters are available for additional purchase.

Camera options
Choose from a 6.3MP color or monochrome camera with an automated lens. The Elite color camera can capture the natural color of the samples, eliminating the need for multiplexing and reducing post image processing for high quality color images.

Intuitive Software with easy access to capture controls

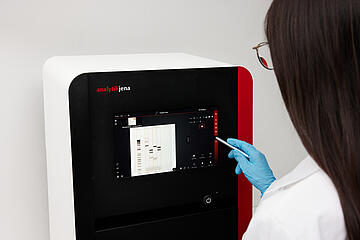

VisionWorks software on the UVP Solo Elite is a powerful yet intuitive software for capturing gel images and analyzing them. The simple user interface enables easy access to auto and manual image capture modes under the Device tab. Exposure time can be adjusted with customizable exposure settings. Captured images are saved in TIFF or JPEG formats.

Extensive image enhancement and analysis tools
Image enhancement and analysis features are included with all systems. Researchers can personalize their experiments and make use of enhancement features and annotation tools for publication purposes. The software offers many powerful tools such as noise reduction, histogram adjustment, inversion, pseudocolor, and more.
The extensive analysis features are optimized for accurate and reproducible results. Several custom tools are available, such as automatic lane and band detection, 1D analysis, area density, and colony counting. Once the quantitation results have been generated, reports are created to show thorough analysis, such as Molecular Weight (MW), Rf, band intensities, and area density calculations. All the data can be conveniently exported to Excel.

Technical Data

Specifications/featuresUVP Solo Elite
Camera/Lens6.3 MP (available in monochrome or color) / Automated lens
Darkroom features
  • 11.6” large integrated touch screen computer with 128GB of storage on a Solid-State Drive (SSD)
  • Intergrated shutoff UV door safety switch
  • 3-position automated emission filter tray with pre-installed filters
  • Overhead white and epi blue LEDs
  • 7 rear, one side USB ports for flash drive data export, USB-to-Ethernet connection or use with mouse of keyboard

Accessories included
  • Broad band filter (535nm – 660nm) pre-mounted on the Elite Mount
  • UVP Elite UV Transilluminator (302 nm)

Dimensions
(H x W x D)
61 x 46 x 38 cm

Order Information

Order numberDescription
115 V230 VModel

849-97-0944-01

849-97-0944-02UVP Solo Elite Imaging System, 6.3 MPx MONOCHROME
849-97-0944-03849-97-0944-04UVP Solo Elite Imaging System, 6.3 MPx COLOR
Accessories
95-0593-01UVP Visi-Blue™ LED Transilluminator, 16.8 x 21cm
38-0408-01UVP Visi-White™ Converter Plate 16.8 x 21cm
38-0409-02UVP Visi-Blue™ Converter Plate 16.8 x 21cm, Elite
38-0220-05Emission filter 580 – 630 nm: EtBr, Elite Mount
38-0219-05Emission filter 510 – 560 nm: SYBR® Green, Elite Mount
38-0221-05Emission filter 520 - 620 nm: SYBR® Gold, Elite Mount
38-0352-05Emission Filter 503 - 523 nm: GFP mice, Elite Mount
38-0340-05Emission Filter 513 - 557 nm: Cy2®, FITC, FAM™, GFP, SYBR® Green, SYBR® Gold, Elite Mount
38-0344-05Emission Filter 565 - 625 nm: Alexa555®, Cy3®, SYPRO® Orange, Elite Mount

Downloads

Brochure-UVP-Solo-Elite

Open PDF
