R-52 Grid Lamp

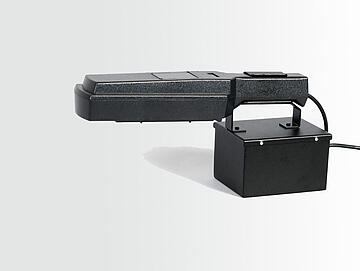

UVP R-52 Grid Lamp

  • Lamp features a high intensity 254 nm UV grid

  • A special UVG shortwave filter reduces solarization, prolonging the filter life

  • Lamp mounts securely in its transformer base or is removable for movement around your work area

  • Lamp manufactured with rugged, scratch resistant plastic

  • A snap-on filter assembly can be easily attached to convert this lamp for fluorescent analysis

Product Details

The UVP R-52 Mineralight Lamp's use a grid design which is a highly uniform 254 nm UV source of high-intensity.

Applications include:

  • Photochemistry/Phosphorescence

  • Inspection

  • Laboratory

  • General Chemical Laboratory

*Product performance and effectiveness will depend on the user.*

Technical Data

Specifications
UV Source

254 nm

Intensity

1250µWatts/cm2 at six inches with the filter

Dimensions

16L x 7.8W x 7.8H in. (406 x 198 x 198 mm)
Weight: 9.5 lb (4.3 kg)

Primary Power Cord

8 feet (2.4 m) and secondary electrical cord: 3 feet (0.9 m)

Order Information

Part Numbers
115 V230 VModelDescription
94-0012-0594-0012-06R-52GR-52 Grid Lamp, 254 nm
Replacement Parts / Accessories
77-0002-02Replacement GridSnap-on filter assembly can be easily attached to convert this lamp for fluorescent analysis
95-0004-03Filter Assembly

Related Products

UV Blocking Eyewear

UV Intensity Meters

Downloads

R-52G_UV_Lamp_Operating_Instructions.pdf

Open PDF

Brochure-UV Lab Catalog

Open PDF
