UVP Hybridizer Ofen

UVP Hybridizer Oven

  • Carousel for multiple bottle sizes and off-set bottle positioning
  • Variable rotor speed 10 - 15 rpm
  • Microprocessor controlled incubation temperature

Product Details

  • LED display for easy operation
  • Easy to clean interior made of stainless steel
  • Removable protective tray to allow easy cleanup of spilled media
  • Glass door for easy viewing of samples and blocking of ß-emission from the hybridization chamber
  • Maximum power consumption: 1,210 Watt

The UVP Hybridizer Oven provides uniform temperature and rotation controls for thorough mixing of materials. The unit is ideal for Southern, Northern, and Western blots; in situ hybridization; and binding nucleic acids to nitrocellulose or nylon-reinforced transfer membranes or other media. Precise microprocessor rotation speed and variable speed control settings enable consistent sample saturation. A touch-sensitive key pad allows for precise temperature control, and an internal circulating fan maintains temperature uniformity. A large LED display shows the current chamber temperature. Internal stainless steel construction enables the environment to be kept clean. The UVP Hybridizer Oven accommodates multiple bottle sizes, arrangements, and positions to meet a variety of mixing requirements. The rotary wheel holds twenty 35 x 150 mm bottles or 35 x 100 mm bottles, ten 35 x 300 mm bottles, or a combination of the various sizes. The rotary wheel can be removed and replaced with a rocker tray or rocker plate to create a rocking motion and to accomodate various types of flasks. The removable protective trays allow for easy cleanup of spilled media.

*Product performance and effectiveness will depend on the user.*

Technical Data

Technical Data

Number of Hybridization chambers

1

Min. Temperature

10 °C above RT

Max. Temperature

99.9 °C

Temperature Accuracy

± 0.3 °C to 68 °C

Temperature Uniformity

± 0.1 °C to 68 °C

Rotor Speed

10 - 15 rpm

Bottles (30 cm)

10

Bottles (15 cm)

20

Footprint (W x D)

40 cm x 38 cm

Height / Weight

45 cm / 19.5 kg

Optional Accessories
Orbital tray

Rotation speed

30 rpm @ 2° angle

Maxium load

1.36 kg

Rocker tray

Shaking speed

7-14 rpm

Shaking angle

12°

Order Information

Previous description: OV 1000

Order number*Description
95-0030-01   (US)
849-30001-4 (EU)
UVP Hybridizer Oven (115 V, US plug)
95-0030-02   (US)
849-30001-3 (EU)
UVP Hybridizer Oven (230 V, Euro plug)
95-0030-03   (US)
849-30001-5 (EU)
UVP Hybridizer Oven (100 V)
849-30001-2UVP Hybridizer Oven (230 V, UK plug)
* Hybridization bottles sold separately.
Accessories
Order numberDescriptionQuantity
07-0194-01   (US)
849-30082-0 (EU)
Hybridization bottle small, 10 x 3.5 cm incl. cap,
O-ring and PFTE seal
1
07-0194-02   (US)
849-30080-0 (EU)

Hybridization bottle large, 30 x 3.5 cm incl. cap,
O-ring and PFTE seal

1
849-30083-0Bottle cap incl. O-ring and PFTE seal1
98-0067-03   (US)
849-30050-0 (EU)
Rocker Tray (for UVP Hybridizer Oven, UVP Hybrilinker Oven and
UVP Multidizer Oven)
1
98-0067-04   (US)
849-30051-0 (EU)
Orbital Tray (for UVP Hybridizer Oven, UVP Hybrilinker Oven and
UVP Multidizer Oven)
1

Downloads

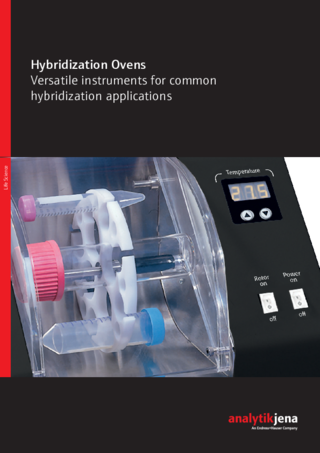

Brochure UVP Hybridization Ovens (English)

Open PDF

Manual UVP Hybridization Ovens

Open PDF

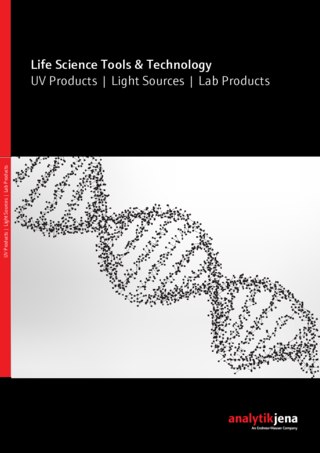

Brochure-UV Lab Catalog

Open PDF
