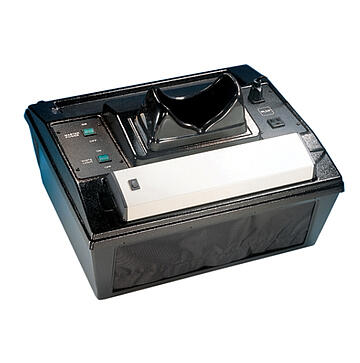

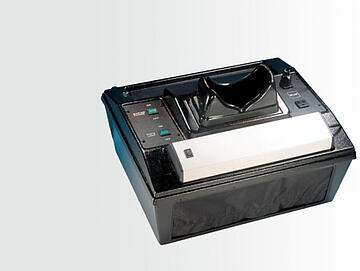

UVP Mid Size UV Viewing Cabinets
- Use of two lamps illuminates the cabinet's interior from two sides of the cabinet
-
Lamps are removable from the cabinet for use in other applications
-
The bottom panel of the cabinet is removable
-
Soft rubber viewport and contrast control filter that absorbs UV energy to protect the eyes
-
Lightweight access curtain blocks external light
-
The C-65 includes an interior overhead white light
Product Details
Mid size viewing cabinets
Multifunctional UVP Chromato-Vue Viewing Cabinet provides a darkroom environment for viewing materials. Use one or two EL Series 8-watt lamp with the cabinet or in other applications.
Applications include:
Thin Layer Chromatography
Non Destructive Testing
Inspection
Mineralogy
Fluorescence
*Product performance and effectiveness will depend on the user.*
Technical Data
Specifications | |||||
---|---|---|---|---|---|
C-65 Light Sources | White Light | ||||
Power switches | Located on top of the unit | ||||
Viewport | With UV blocking filter | ||||
Dimensions Cabinet Interior | 17W x 14D x 6H in. | ||||
Dimensions Cabinet Exterior | 19.75W x 16.5D x 13.25H in. |
Order Information
Part Numbers | |||
---|---|---|---|
115 V | 230 V | Model | Description |
95-0257-01 | 95-0257-02 | C-65 | Cabinet, Base with White Light (no UV source) |
Replacement Parts / Accessories | |||
34-0002-01 | 34-0040-01 | Replacement Bulb, White Light | |
89-0112-03 | Hood/Mount for a CCD Camera |
The UVP C-65 Chromato-Vue Cabinet is designed to accommodate one or two EL Series 8-watt lamps (ordered separately)
Lamps come with a universal plug which connects directly to the C-65 Cabinet, plus a supplementary power cord to plug into a line current for operating the lamp in other applications
Downloads
Brochure-UV Lab Catalog
