UVP XX-Series UV Bench Lamps

Various fixture sizes, watts and wavelengths are available
Lamps include holes on each end of the fixture for hanging or mounting the lamp
Lamps are manufactured with a durable aluminum housing and powder paint scratch resistant finish
Shortwave lamps can be used in an upward facing position or in a downward position

Product Details

UVP Bench XX-Series UV Lamps offer a complete selection of models - fixture only or with a choice of the following wavelengths: longwave, BLB (black light blue), shortwave or midrange. Shortwave UV (254nm) offers a reliable and effective tool for several applications in laboratories, pharmaceutical companies and clinic. The 352 nm BLB tubes can be used in inspection and testing applications.

Shortwave UV: Applications in laboratory and field
Longwave/Midrange: Fluoresence and inspection

*Product performance and effectiveness will depend on the user.*

Technical Data

Specifications
UV Source	Select from 254 nm, 365 nm, 365 nm BLB and 302 nm. Refer to the Part Numbers tab to determine which wavelengths are available in each lamp size. The 352 nm BLB tube is available as an option for use in the XX-15 lamp fixture.
Watts	Select from 15 watt, 20 watt or 40 watt
XX-15 Dimensions	19.75L x 6W x 4.25H in. (502 x 152 x 108 mm) Weight: 5 lb (2.3 kg)
XX-20 Dimensions	24L x 6W x 4.25H in. (610 x 152 x 108 mm) Weight: 10 lb (4.5 kg)

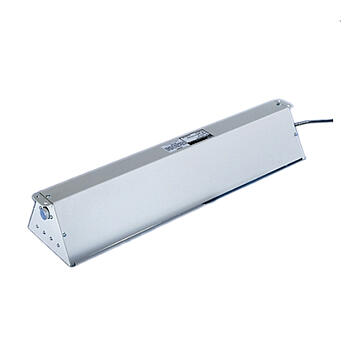

XX-40 Dimensions	49.6L x 6W x 4.25H in. (1260 x 152 x 108 mm) Weight: 20 lb (9.0 kg)
Exposure Stand	20W x 6D x 13H in. Weight: 8 lb (3.6 kg)

Order Information

Part Numbers
115 V	230 V	Model	Description
XX-Series - 15 Watt
95-0042-03	95-0042-02	XX-15	XX-15 Bench Lamp Fixture (no UV tubes)
95-0042-06	95-0042-11	XX-15BLB	XX-15BLB Bench Lamp, 365 nm BLB

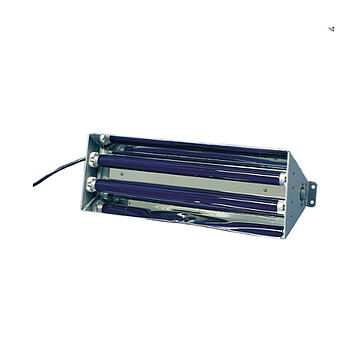

95-0042-05	95-0042-09	XX-15S	XX-15S Bench Lamp, 254 nm
95-0042-07	95-0042-13	XX-15L	XX-15LW Bench Lamp, 365 nm
95-0042-08	95-0042-15	XX-15M	XX-15MR Bench Lamp, 302 nm
XX-Series - 20 Watt
95-0045-01	95-0045-02	XX-20	XX-20S Bench Lamp, No UV tubes
95-0045-04	95-0045-05	XX-20BLB	XX-20BLB Bench Lamp, 365 nm BLB
95-0045-07	95-0045-08	XX-20S	XX-20S Bench Lamp, 254 nm
XX-Series - 40 Watt
95-0043-01	95-0043-02	XX-40	XX-40 Bench Lamp, No UV tubes
95-0043-04	95-0043-05	XX-40BLB	XX-40BLB Bench Lamp, 365 nm BLB
95-0043-07	95-0043-08	XX-40S	XX-40S Bench Lamp, 254 nm
Replacement Parts / Accessories

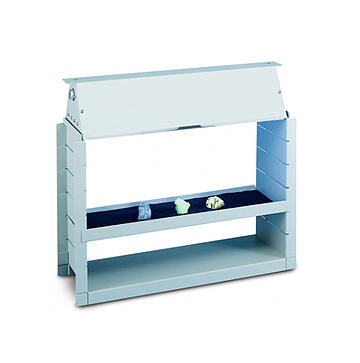

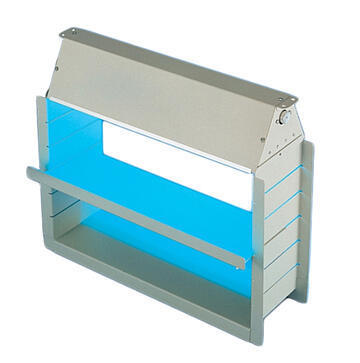

18-0062-01	Exposure Stand	XX-15 Stand - The shelf is adjustable to different levels for repeatable exposure of samples
38-0172-02	Filter	Filter for XX-15S
Note: The tubes in lamp fixtures are interchangeable for applications that require different wavelengths. Order tubes of the same wattage.
34-0009-02	Tube, 15 Watt, 365 nm
34-0017-01	Tube, 15 Watt, 365 nm BLB
34-0017-02	Tube, 15 Watt, 352 nm BLB
34-0039-01	Tube, 15 Watt, 302 nm
34-0008-01	Tube, 15 Watt, 254 nm
34-0068-01	Tube, 20 Watt, 365 nm BLB
34-0067-01	Tube, 20 Watt, 254 nm
34-0068-02	Tube, 40 Watt, 365 nm BLB
34-0067-02	Tube, 40 Watt, 254 nm
34-0070-03	Tube, 40 Watt, 302 nm
