UVP Mini UV Lamps

  • Models include longwave, shortwave and longwave/shortwave combination

  • Four Watts

  • Manufactured of impact-resistant plastic which resists fading or cracking

  • Lamps are small enough to fit in a pocket

  • A nylon strap is attached for easy carrying

  • 4 AA batteries (not included)

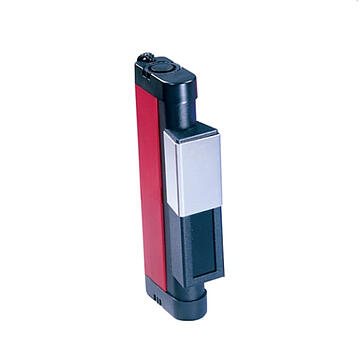

  • The UVSL-14P includes a slider plate for selecting either longwave or shortwave UV

Product Details

Mini four-watt UV Lamps are battery operated and are excellent as a portable lamp for field use. Manufactured of impact-resistant plastic which resists fading or cracking. Mini UV Lamps are small enough to fit in a pocket.

Applications include:

  • Field inspections

  • Industrial inspections

  • Laboratory

  • Lapidary

*Product performance and effectiveness will depend on the user.*

Technical Data

Specifications
UV Source

Select from 254 nm, 365 nm, or combination 254/365 nm in the same lamp

WattsFour
Power Source

4 AA batteries (order separately)

Dimensions

UVG-4, UVSL-14P, UVL-4: 6.25L x 1W x 2.2D in. (159 x 25 x 56 mm)
UVL-4F: 7.9L x 2W x 1.25D in. (201 x 51 x 32 mm)



Order Information

Part Numbers
115VModelDescriptionReplacement Tubes
95-0158-04UVG-4Mini UV Lamp, 254 nm34-0003-01
95-0188-02UVSL-14PMini UV Lamp, 254/365 nm34-0004-01
95-0125-05UVL-4Mini UV Lamp, 365 nm34-0010-01
95-0305-03UVL-4FMini UV Lamp, 365 nm w/ flashlight34-0010-01
