UVP Handheld UV Lamps

Lamps are lightweight for easy handling
Durable plastic housing
Six watt tubes
Models available with shortwave (254 nm), midrange (302 nm), longwave (365 nm) UV or a combination shortwave/longwave (254/365 nm) version
Combination shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths

Product Details

Lamps are lightweight for easy handling

Handheld UV Lamps (6 watts) are uniquely designed with an ergonomically designed handle. Select from longwave, midrange, shortwave or combination longwave and shortwave in the same lamp.

Applications include:

Photochemistry/Phosphorescence
Inspection
Laboratory
General Chemical Laboratory

*Product performance and effectiveness will depend on the user.*

Technical Data

Specifications
Housing	Plastic
UV	Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm
Watts	Six
Lamp Dimensions	14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm)
Lamp Stand Dimensions	10.74H x 13L x 3W in. (273 x 330 x 76 mm)

Order Information

Part Numbers
115 V	230 V	Model	Description 6 Watt Lamps	Filter
95-0004-09	95-0004-10	UVG-54	Handheld UV Lamp, 254 nm	98-0004-03
95-0005-05	95-0005-06	UVGL-55	Handheld UV Lamp, 254/365 nm (Multi-band split tube lamp)	98-0005-03
95-0007-05	95-0007-06	UVGL-58	Handheld UV Lamp, 254/365 nm	98-0004-03
95-0006-02	95-0006-03	UVL-56	Handheld UV Lamp, 365 nm	98-0006-03
95-0104-01	95-0104-02	UVM-57	Handheld UV Lamp, 302 nm	98-0004-03
Replacement Parts / Accessories

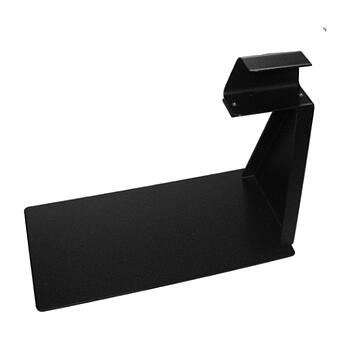

98-0016-03		J-129	Lamp Stand
34-0013-01		Replacement Tube	6 Watt, 254 nm
34-0015-01		Replacement Tube	6 Watt, 254/365 nm (split tube)
34-0034-01		Replacement Tube	6 Watt, 365 nm
34-0044-01		Replacement Tube	6 Watt, 302 nm

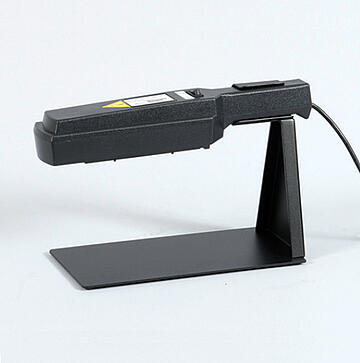

Use these lamps with the J-129 Lamp Stand for hands free operation

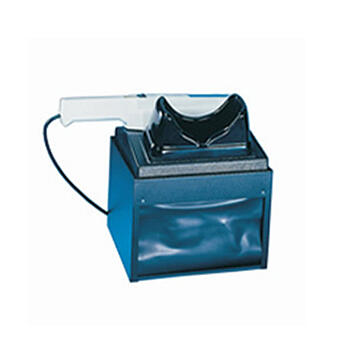

Use these lamps the C-10 Cabinet for fluorescing and viewing materials in a darkened environment
UV blocking eyewear

Downloads

Handheld_Lamps_Operating_Instructions.pdf

Open PDF

Brochure-UV Lab Catalog
